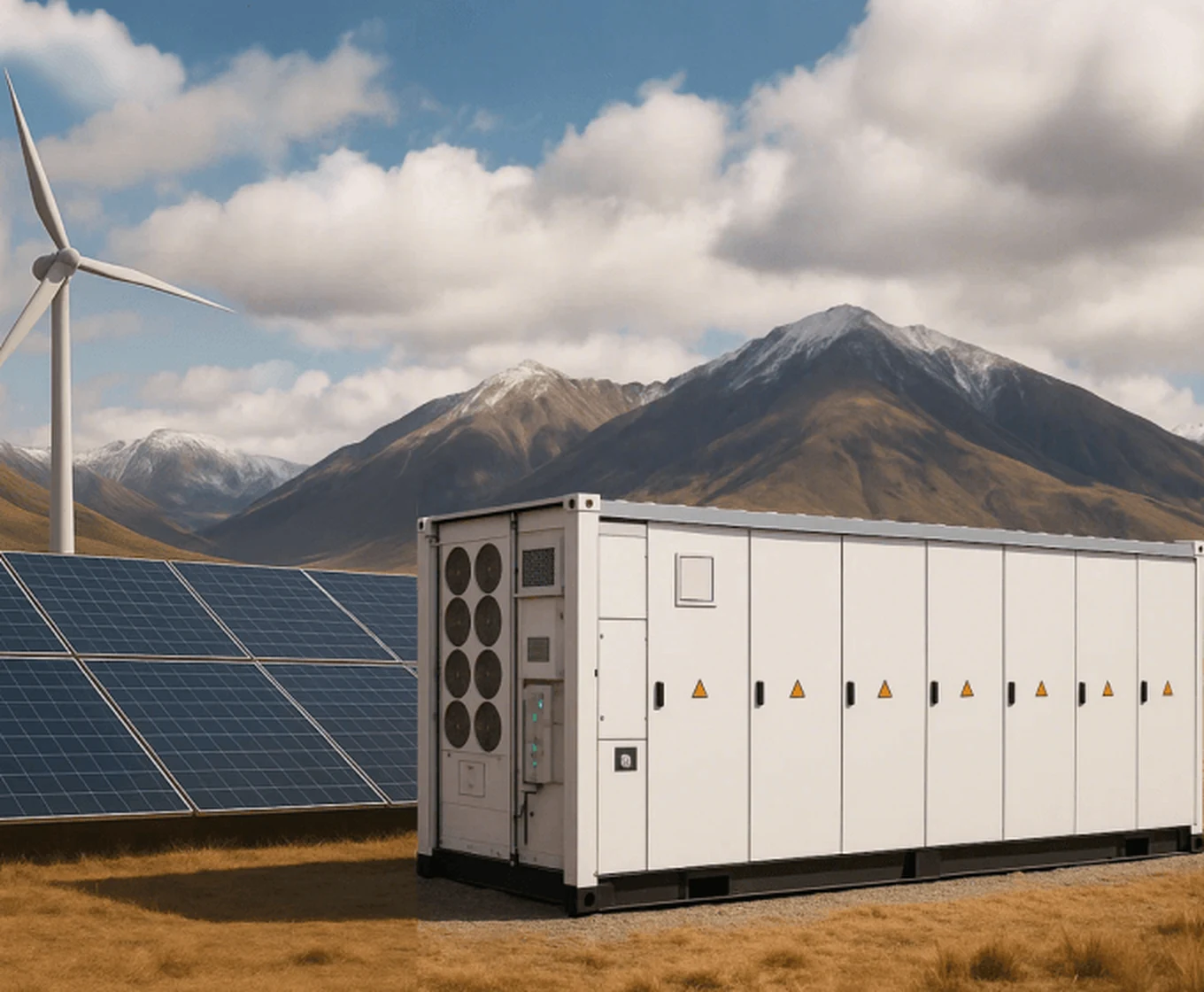

Containerized battery energy storage system installed alongside solar and wind generation

Solutions / BESS

Battery energy storage systems for industrial and commercial operations

MotiraTech configures, integrates and delivers BESS for industrial, commercial and remote sites — application assessment, system sizing, PCS and EMS integration, hybrid power coordination, commissioning and field support.

Talk to an Engineer Submit Project Requirements

Engineering position

Energy storage is an engineering decision made from site data. We size and configure systems around measured load behaviour, existing infrastructure and a defined operating objective — and we say so when storage is not the right answer for the site.

BESS solution overview

What MotiraTech provides

Canadian engineering, global manufacturing and supply-chain capability, system integration and project delivery — carried through commissioning and field support by one team.

System configuration

Storage requirements are derived from load behaviour, tariff structure and operating objectives, then translated into a system configuration — energy and power basis, enclosure format and interconnection point.

Integration

Battery system, power conversion and site electrical infrastructure are engineered as one interface, including protection coordination, metering and the physical and thermal installation arrangement.

Controls and EMS

Control strategy is defined with the site: what the system is dispatched for, how it interacts with existing generation and load, and how it is monitored and reported.

Deployment and support

Supply coordination, installation support, commissioning and post-commissioning technical assistance, including remote and field-based support for remote operations.

System categories

BESS configurations we engineer

Solution categories, not catalogue products. The appropriate configuration follows from the assessed duty, site conditions and interconnection requirements.

Commercial & industrial BESS

Storage configured around a facility or plant load — demand management, load shifting and supporting site power quality objectives.

Containerized BESS

Enclosure-based systems for outdoor, brownfield and remote installations where site civil works and footprint are the deciding constraints.

Liquid-cooled BESS

Systems using liquid thermal management, evaluated where duty cycle, ambient conditions or density requirements make the thermal design the governing factor.

Utility / large-scale BESS

Larger installations connected at distribution or transmission level, where interconnection requirements and utility coordination shape the engineering.

Hybrid energy systems

Storage combined with renewable generation and, where present, existing generator capacity — coordinated through a single control strategy.

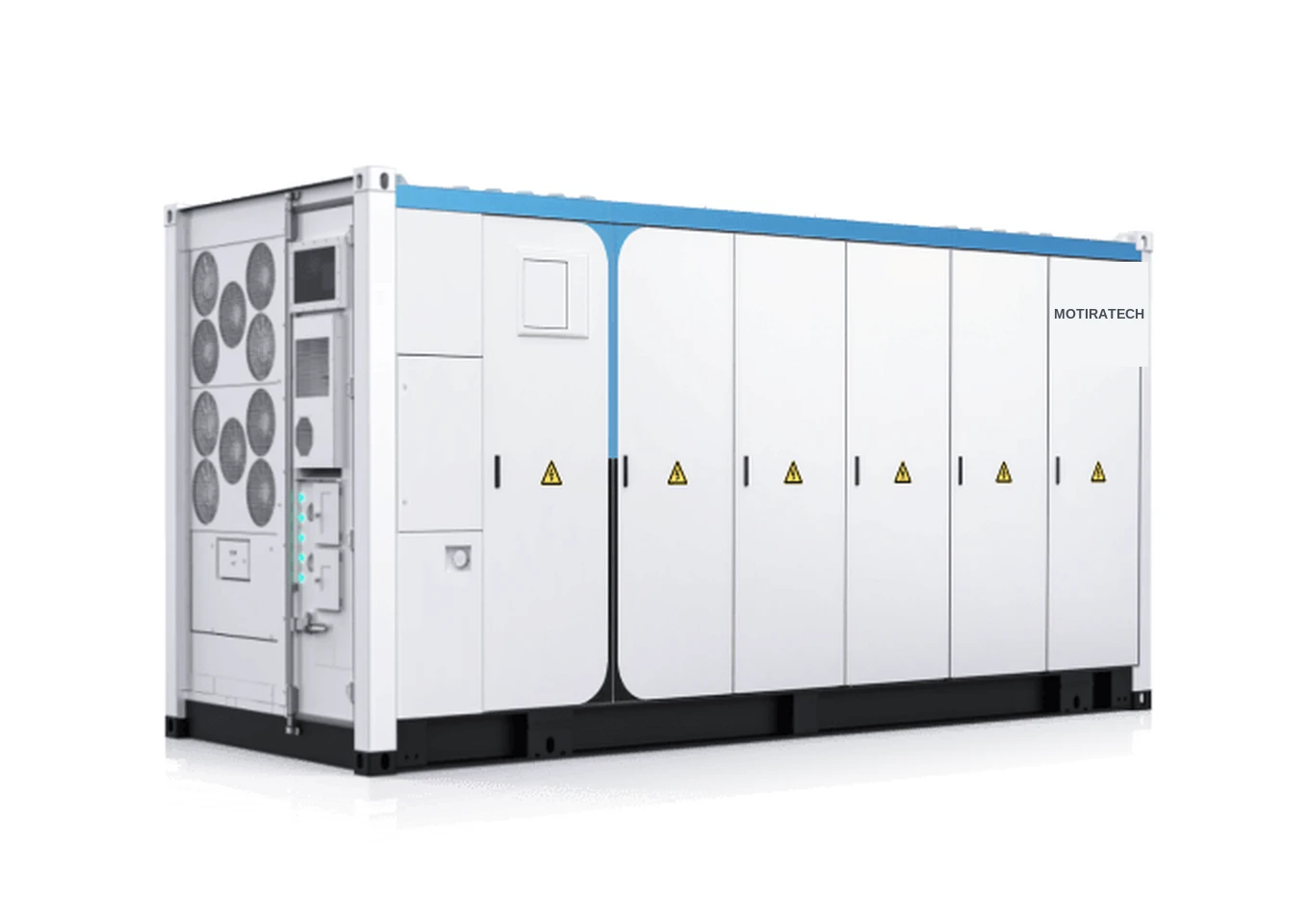

MotiraTech 20 ft containerized battery energy storage system with integrated liquid-cooling units — Containerized battery energy storage system with integrated liquid cooling

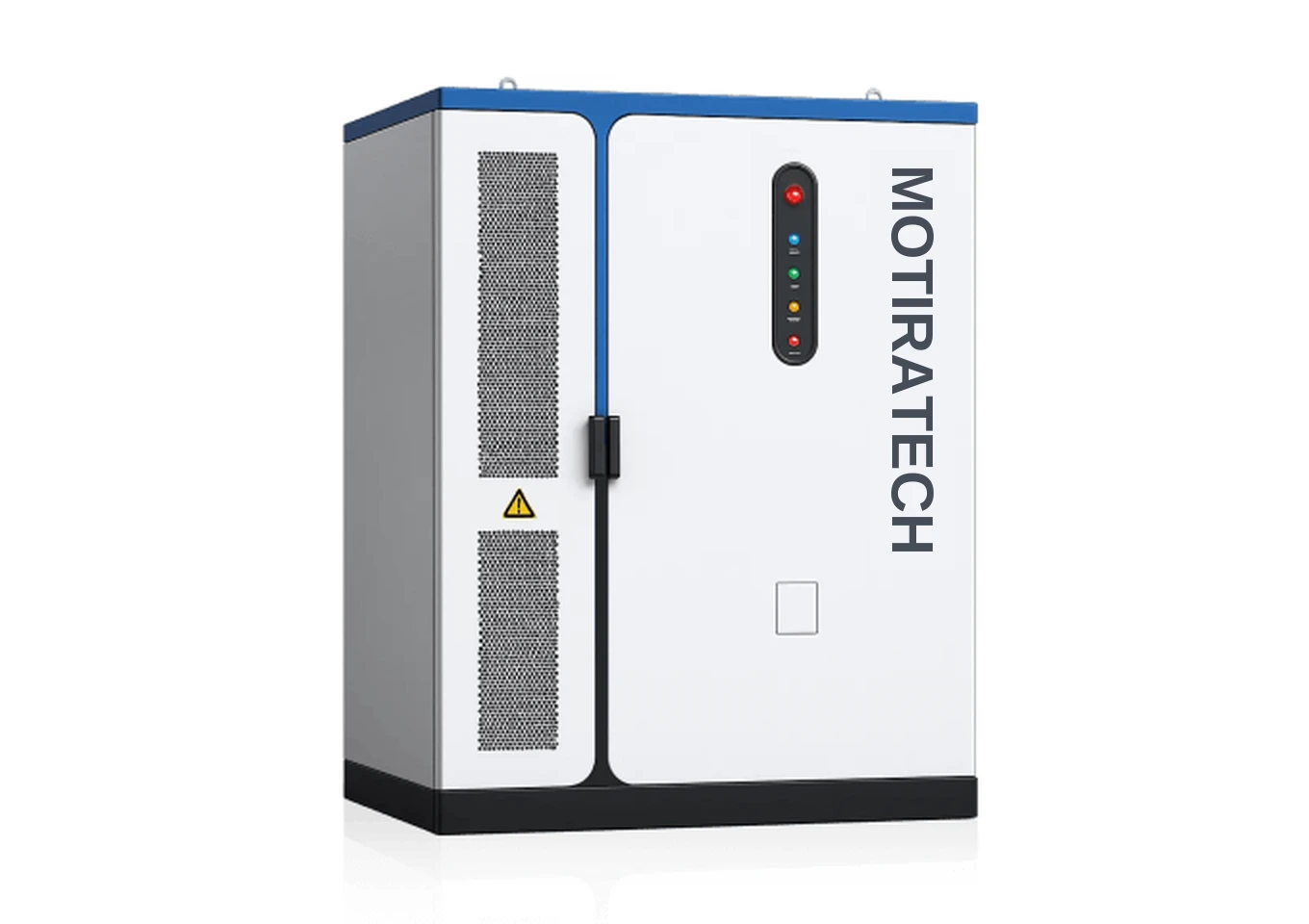

MotiraTech outdoor commercial and industrial energy storage cabinet with status indicators — Outdoor commercial and industrial energy storage cabinet

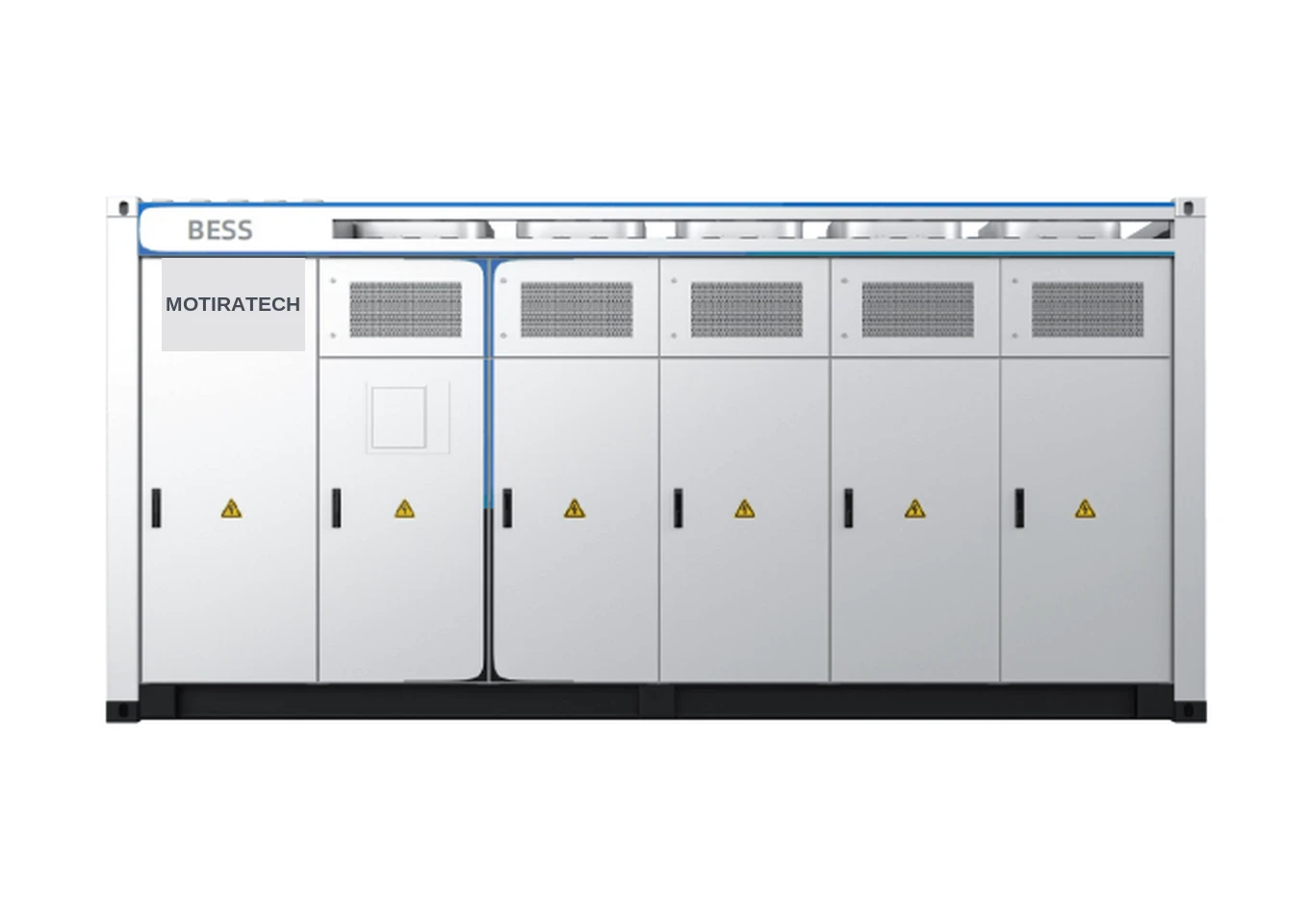

Front elevation of a MotiraTech containerized BESS showing battery and conversion compartments — Front elevation showing battery and conversion compartments

Specifications confirmed per applicationCapacities, power ratings, voltages, cell chemistry, cycle life, thermal performance, efficiency, degradation behaviour, warranties and certifications are confirmed per application against manufacturer documentation, and documented in project-specific technical documentation.

Industrial applications

Where storage is assessed

Each application is evaluated against the site's own load data and operating objective. Outcomes are site-specific and are not published as generic figures.

Peak demand management

Discharging during identified demand peaks so the site's billed demand is shaped by the storage system rather than by short load excursions.

Load shifting

Moving energy consumption between periods where a time-of-use or demand-based tariff makes the timing of consumption commercially relevant.

Backup and resilience

Supporting defined critical loads through supply interruptions, with the supported load list and duration established during assessment.

Renewable integration

Absorbing and re-dispatching variable solar or wind output so generation and site load can be coordinated.

Remote power

Storage for off-grid and remote sites where generation is local, logistics are constrained and fuel handling is a significant operating cost.

Microgrid and hybrid power

Coordinating storage, renewable generation and generators as one system with a defined dispatch and transition strategy.

Industrial energy management

Using storage alongside monitoring and control so energy behaviour becomes a managed part of plant operation rather than a fixed cost.

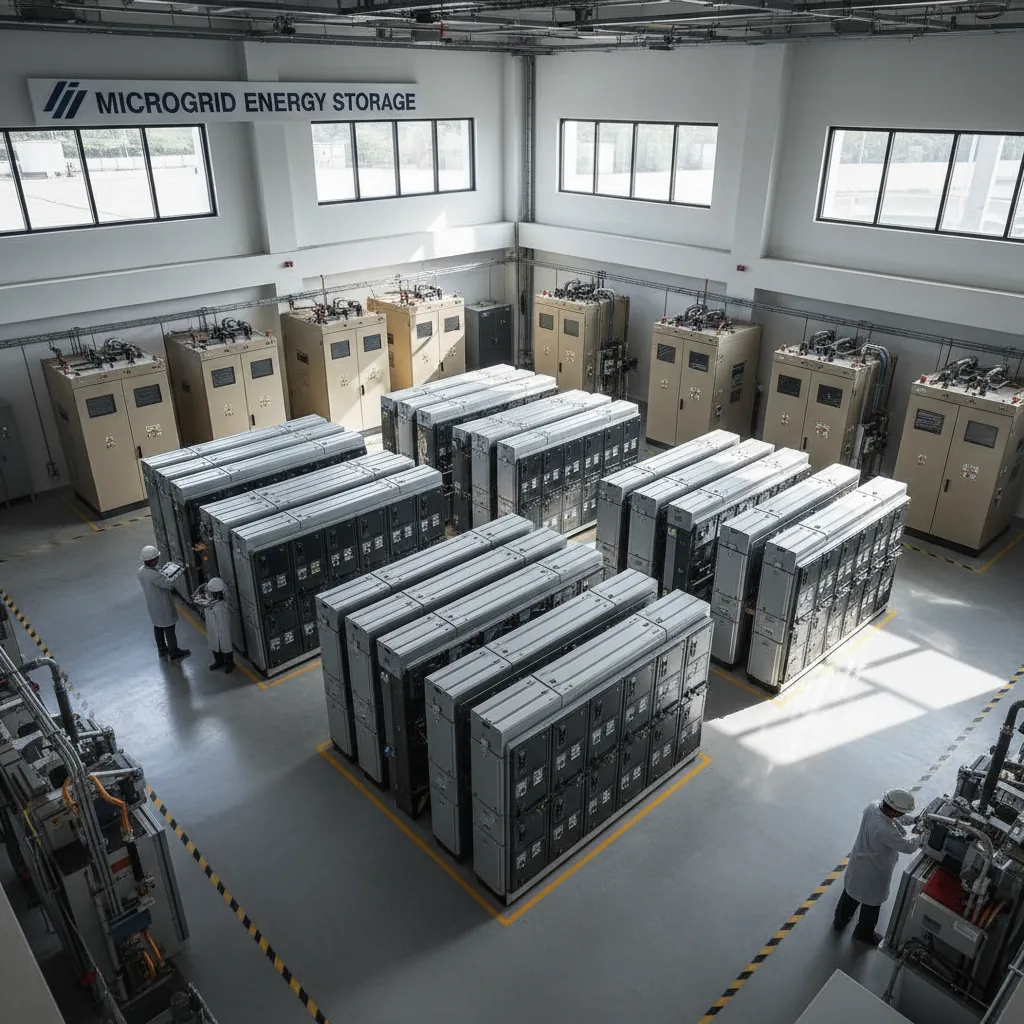

Microgrid and energy storage system installation — Microgrid and energy storage installation

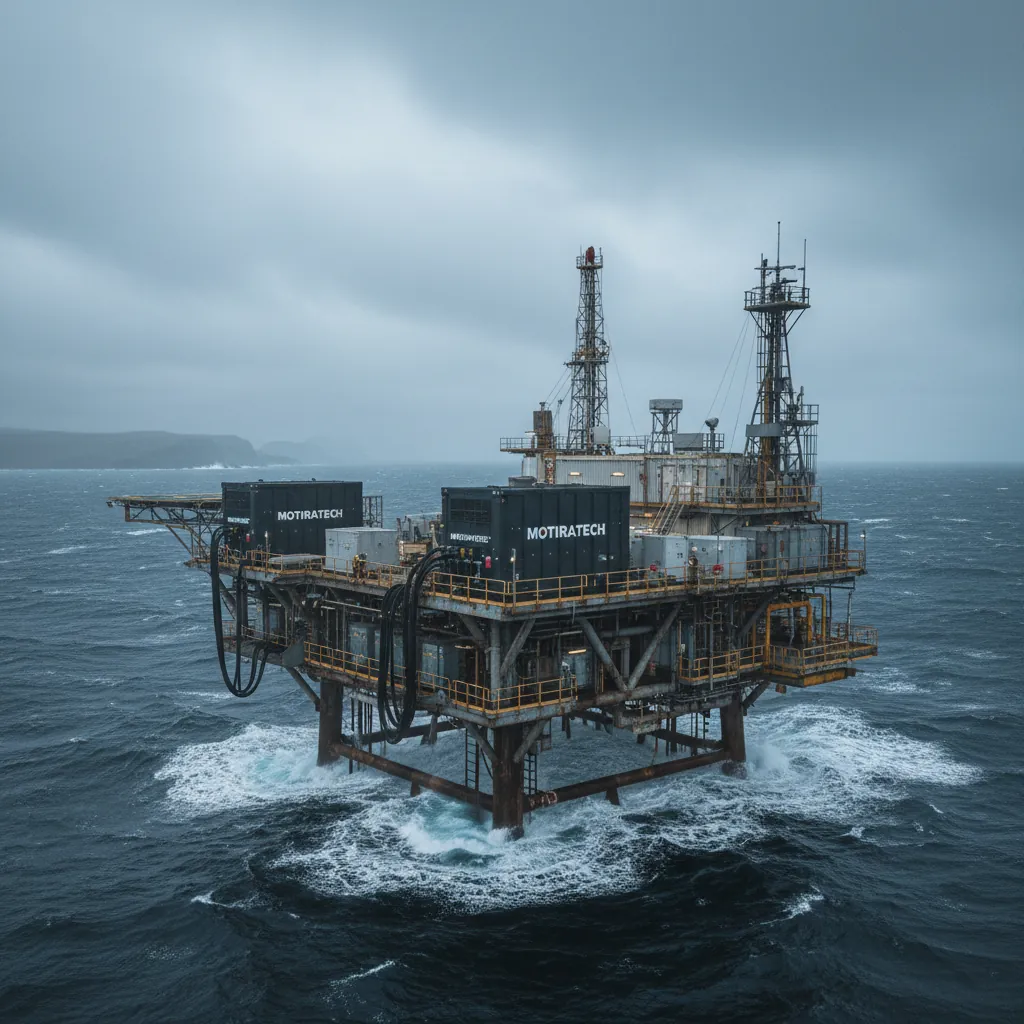

Remote power system for off-grid industrial operations — Storage-based power for off-grid and remote operations

Outcomes are site-specificThe demand, energy-cost, fuel and resilience outcomes of a storage system depend on the site's load profile, tariff structure, generation mix and operating strategy, and are established from site data during application engineering.

BESS product portfolio

Commercial, industrial and utility-scale battery energy storage systems

MotiraTech provides battery energy storage solutions for commercial, industrial and utility-scale applications, combining modular battery systems, power conversion, controls and project-specific integration.

Product data sourceThe specifications below are transcribed from the supplied manufacturer datasheets for the equipment MotiraTech supplies and integrates. Equipment is manufactured by MotiraTech's manufacturing partners; MotiraTech is responsible for engineering, integration and project delivery.

Commercial & industrial energy storage

MotiraTech Commercial Energy Storage System

MotiraTech ES-125 kW / 279.55 kWh · MotiraTech ES-250 kW / 559.1 kWh

Modular C&I energy storage in two configurations — 125 kW / 279.55 kWh and 250 kW / 559.1 kWh — combining a liquid-cooled LFP battery system, an integrated bidirectional PCS and an integrated EMS in a North American 480 Vac configuration.

Applications

Peak shaving / demand-charge management
Load shifting
Self-consumption
PV energy shifting
Time-of-use optimization
Active and reactive power control
Zero-export applications

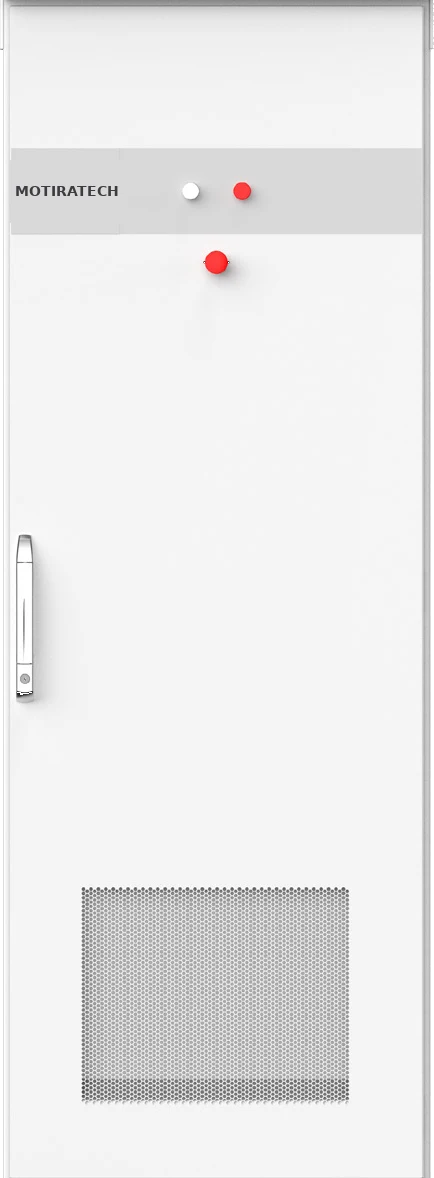

Liquid-cooled LFP battery cabinet for commercial and industrial energy storage — Liquid-cooled LFP battery cabinet (O652280-E)

Integrated bidirectional power conversion cabinet with energy management system — Integrated bidirectional PCS cabinet with EMS

Commercial ESS — key product information11 ROWS

01Configurations	125 kW / 279.55 kWh · 250 kW / 559.1 kWh
02Models	MotiraTech ES-125 kW / 279.55 kWh · MotiraTech ES-250 kW / 559.1 kWh
03Battery chemistry	LFP
04Cooling	Liquid-cooled battery system
05Power conversion	Integrated bidirectional PCS
06Controls	Integrated EMS
07Architecture	Modular and scalable
08Nominal grid voltage	480Vac
09Enclosure	NEMA 3R (PCS and battery cabinets)
10Fire suppression	Integrated
11Configuration	North American

Manufacturer product certification / compliance

System

UL 9540

Battery

UL 1973
UL 9540A

PCS

UL 1741-SA/SB Ed. 3
CSA C22.2 No. 107.1-16
IEEE 1547a-2014
IEEE 1547-2018
FCC Part 15

As stated in the supplied manufacturer datasheet. These are product certifications held by the equipment manufacturer, not corporate certifications of MotiraTech.

Utility / large-scale containerized platform

5 MWh Liquid-Cooled Battery Energy Storage System

MotiraTech ES-5015KWH-US-M-R

A 20 ft containerized, liquid-cooled LFP battery platform for utility-scale and large industrial installations, paired with external power conversion for medium-voltage site integration.

Applications

Utility-scale BESS
Renewable-energy integration
Microgrids
Industrial energy infrastructure
Large commercial and industrial applications
Hybrid power systems

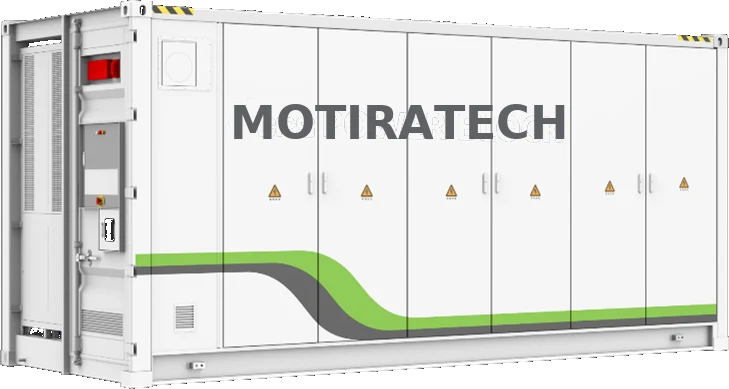

5 MWh liquid-cooled containerized battery energy storage system in a 20 ft enclosure — 20 ft liquid-cooled containerized battery system

MotiraTech ES-5015KWH-US-M-R — primary specifications12 ROWS

01Battery capacity	5015.9kWh
02Battery chemistry	LFP, 314 Ah cells
03Container	20ft
04Rated voltage	1331.2V
05Operating voltage	1164–1497V
06Maximum power	2508kW
07Cooling	Liquid cooling
08Protection	IP54
09Fire suppression	Integrated
10Communication	RS485 / Ethernet / CAN
11Protocols	Modbus RTU / Modbus TCP / CAN
12Dimensions	6058 × 2896 × 2438mm

Manufacturer product certification / compliance

Battery

UL 1973
UL 9540A

System

UL 9540

As stated in the supplied manufacturer datasheet. These are product certifications held by the equipment manufacturer, not corporate certifications of MotiraTech.

Power conversion / utility integration

2 MW / 2.4 MW String PCS Station

MotiraTech PSW2M-US (2000 kW) · MotiraTech PSW2.4M-US (2400 kW)

A power conversion station integrating string PCS units, low-voltage BOS, switchgear, auxiliary power, communications and a medium-voltage transformer as one delivered assembly for utility-scale storage interconnection.

Smart-grid functionality

Volt Ride-Through
Frequency Ride-Through
Ramp-rate control
Power-factor control
Volt-VAR
Frequency-Watt
Volt-Watt

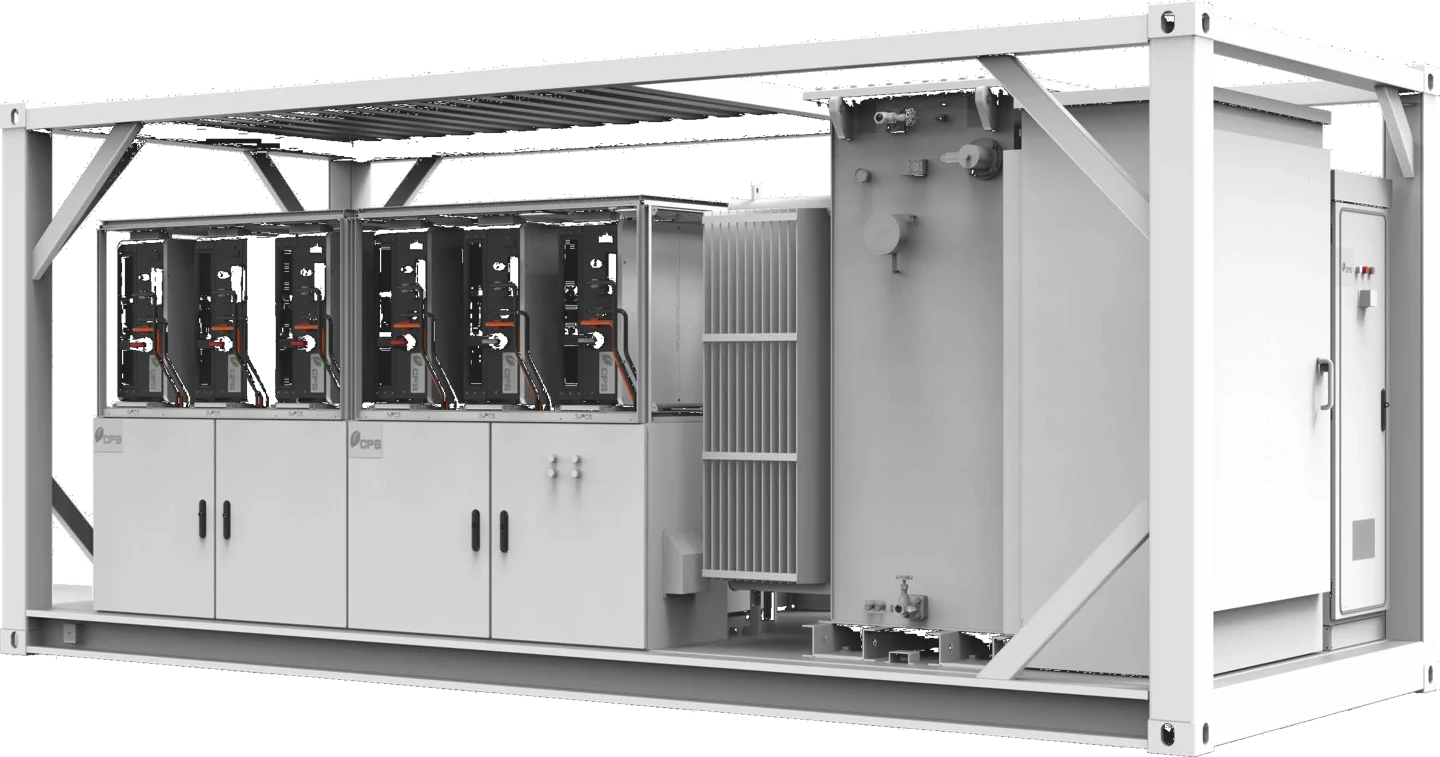

String PCS station with low-voltage balance of system and medium-voltage transformer on a 20 ft skid — String PCS station with LV BOS, switchgear and MV transformer

String PCS station — key specifications08 ROWS

01Models	MotiraTech PSW2M-US (2000 kW) · MotiraTech PSW2.4M-US (2400 kW)
02DC input	1500 V maximum
03Nominal-power DC range	950–1500V
04Grid frequency	60Hz
05Medium voltage	34.5kV
06Enclosure	NEMA 3R
07Communication	RS485 / Ethernet / CAN
08Integrated equipment	String PCS, LV BOS, switchgear, auxiliary power, communications, MV transformer

Manufacturer product certification / compliance

Converter

UL 1741
CSA C22.2 No. 107.1-16

Interconnection

IEEE 1547-2018

Emissions

FCC Part 15

As stated in the supplied manufacturer datasheet. These are product certifications held by the equipment manufacturer, not corporate certifications of MotiraTech.

Mobile hybrid microgrid

Hybrid Solar–Storage–Diesel Microgrid System

MotiraTech E42S24G25P2/27-NA · 24 kW / 42 kWh / 18 kW generator

A trailer-ready hybrid microgrid combining a 42 kWh liquid-cooled LFP battery, a 24 kW hybrid inverter with EMS, onboard solar expandable to 27 kW and an 18 kW diesel generator as backup. Designed for cold-climate, off-grid and temporary power where diesel-only generation is costly to supply.

System characteristics

Operating range −30 °C to +55 °C with liquid thermal management
Trailer-ready at 1.7 t for rapid redeployment
Auto-unfolding onboard solar, expandable via plug-in MPPT ports
Hybrid EMS with on/off-grid switching, UPS function and remote monitoring

Applications

Remote and Indigenous community microgrids
Mining, forestry and construction camps
Emergency and disaster-response power
Off-grid lodges, research stations and parks
Grid-weak rural electrification
Seasonal agricultural operations

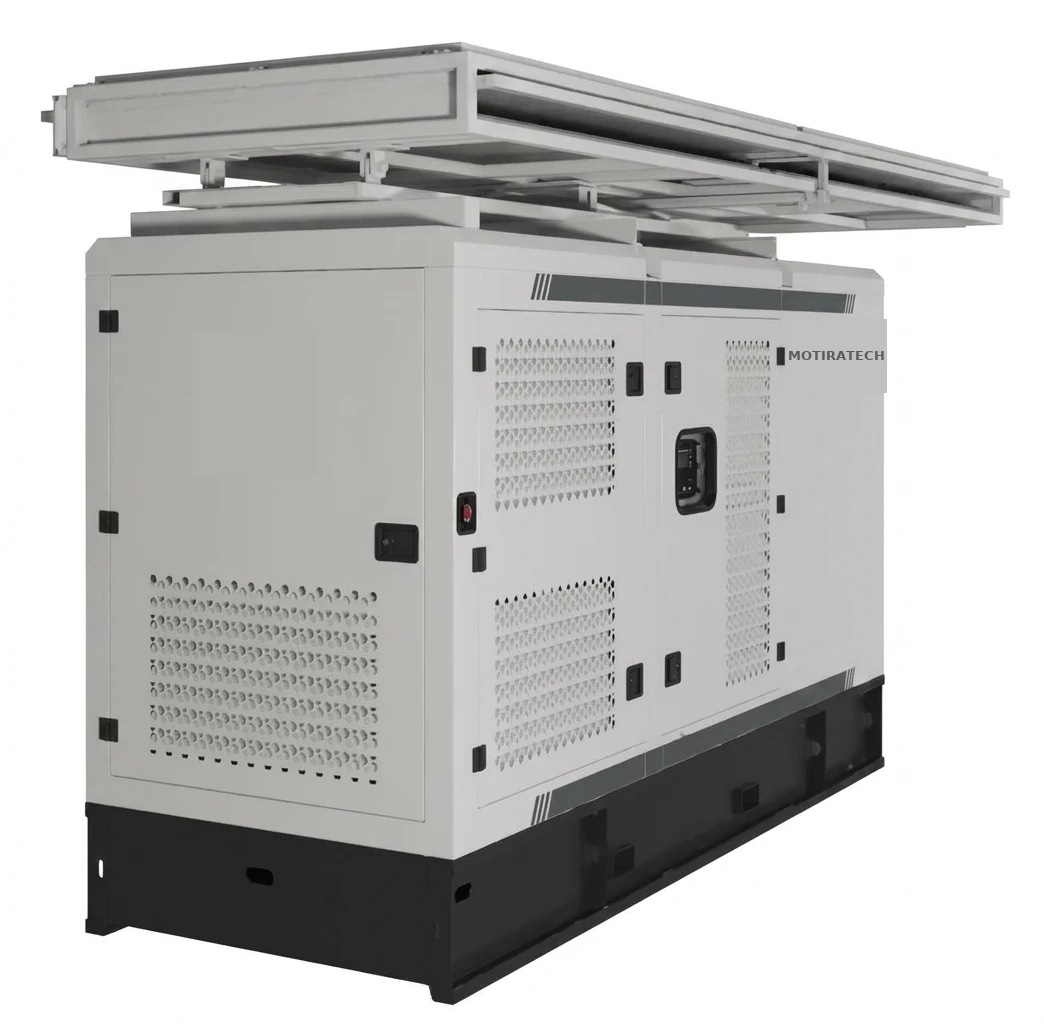

Mobile hybrid solar, battery storage and diesel microgrid unit with auto-unfolding solar array — Mobile hybrid unit with auto-unfolding solar array deployed

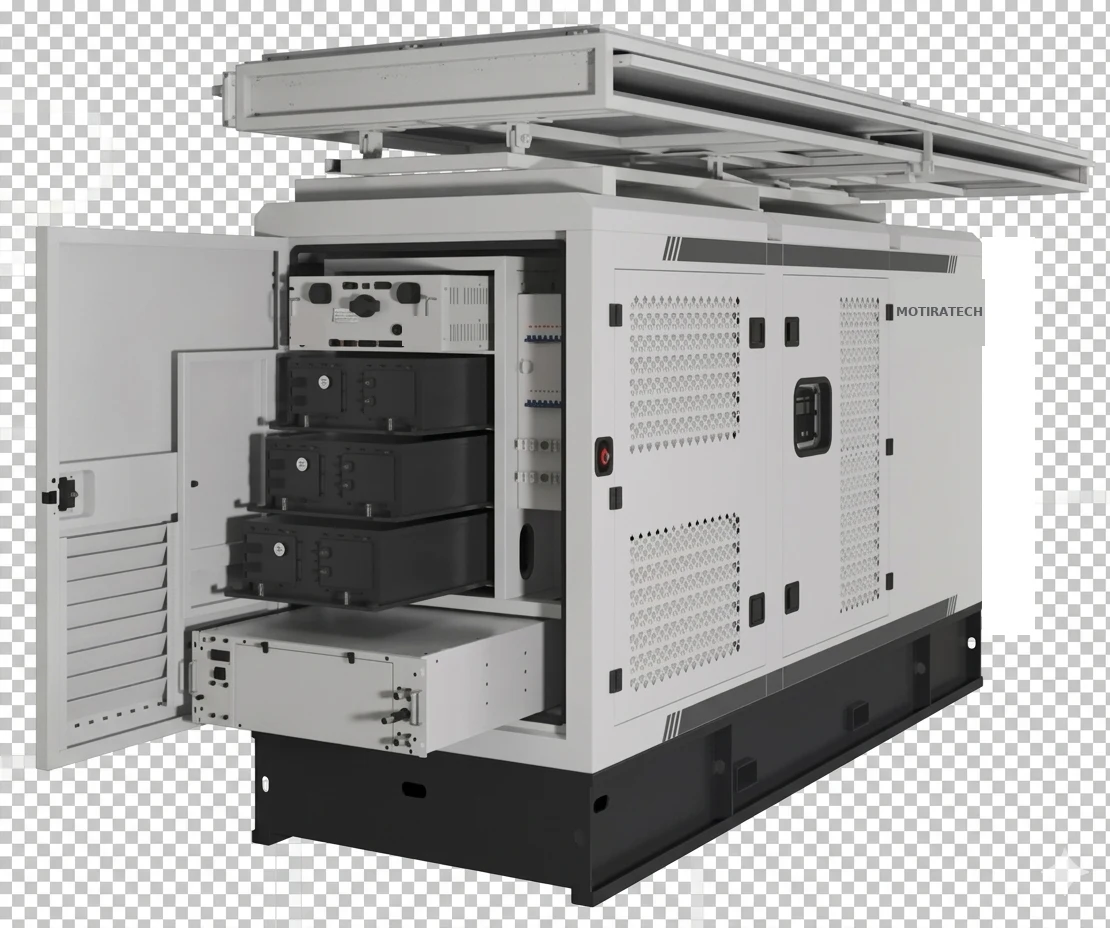

Hybrid microgrid unit with cabinet door open showing battery modules and control gear — Battery modules and control gear

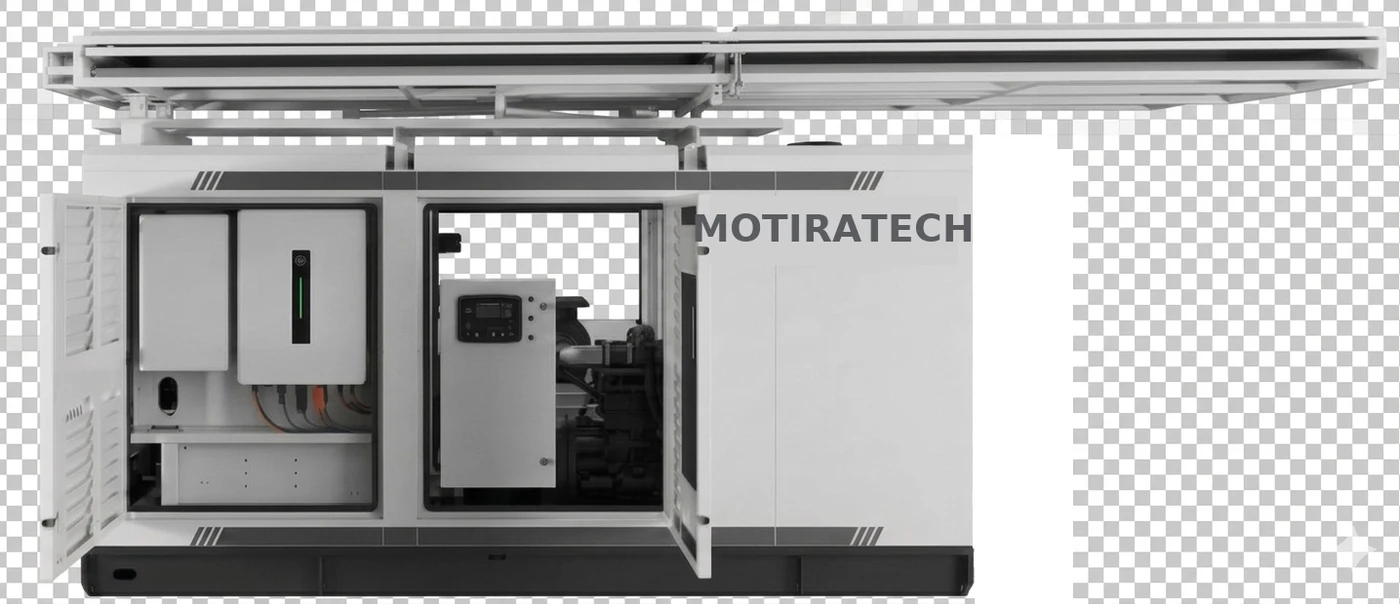

Front view of the hybrid microgrid unit showing hybrid inverter, battery and diesel generator compartments — Inverter, battery and generator compartments

Hybrid microgrid system — key specifications25 ROWS

01Model	MotiraTech E42S24G25P2/27-NA
02System rating	24 kW / 42 kWh / 18 kW generator
03Battery	42 kWh LFP (automotive-grade)
04Cycle life	≥ 4,000 cycles @ 80% DOD, 25 °C
05Battery thermal management	Liquid-cooled and heated
06Depth of discharge	90%
07Battery temperature range	−20 °C to +60 °C
08Inverter / PCS	24 kW hybrid, 120/240 V @ 60 Hz
09Inverter efficiency	96.4% CEC
10Inverter protection	IP65
11THDi	< 2%
12Onboard solar	2 kW (3 × N-type panels), 23.3% panel efficiency
13Solar expansion	Up to 27 kW via 3 × 9 kW MPPT
14PV inputs	4 × MPPT (150–430 V)
15Tilt angle	0 / 15 / 30 / 45°, manual
16Generator	Cummins 25 kW engine / 18 kW generator, 120/240 V @ 60 Hz
17Fuel tank	180L
18Fuel consumption	6.1 L/h @ 100% load
19Altitude rating	≤ 4,500m
20Noise level	75 dB(A) @ 7 m
21Dimensions (W × D × H)	3,530 × 1,130 × 1,880mm
22Weight	1.7 t (trailer-ready)
23Operating temperature	−30 °C to +55 °C
24Protection grade	IP54, C5 corrosion resistant
25Enclosure	Silencer-equipped, all-weather

Manufacturer product certification / compliance

Battery / system

UL 1973
UL 9540
UL 9540A

Power conversion

UL 1741

Cell / transport / EMC

CSA C22.2 No. 62133
UN 38.3
FCC Part 15

As stated in the supplied manufacturer datasheet. These are product certifications held by the equipment manufacturer, not corporate certifications of MotiraTech.

Solar yield, generator runtime and diesel displacement depend on site irradiance, load profile and operating strategy, and are established from site data during application engineering.

System relationship

How the products fit together

The portfolio is a single system chain, not a catalogue. Battery system, power conversion, medium-voltage interface and site electrical system are configured together for the application.

Utility / large-scale configuration

Battery system

5 MWh liquid-cooled BESS (MotiraTech ES-5015KWH-US-M-R)

Power conversion

2 MW / 2.4 MW string PCS station (MotiraTech PSW2M-US / PSW2.4M-US)

Medium-voltage / site integration

Switchgear, transformer, protection and metering

Grid / industrial load / renewable generation

Commercial & industrial configuration

Battery cabinets

279.55 kWh / 559.1 kWh liquid-cooled LFP battery cabinets

Integrated bidirectional PCS + EMS

125 kW / 250 kW, NEMA 3R

480 V site electrical system

Facility distribution, PV and site load

Both configurations map onto the same system architecture shown below: battery system, power conversion, controls, site distribution and the grid, load and generation it serves.

MotiraTech role

What MotiraTech does with these systems

Product supply is one part of the work. The engineering that makes the equipment fit the site is the deliverable.

Application assessment

Review of load behaviour, tariff structure, generation mix and site constraints to establish what the storage system has to do.

System sizing and configuration

Energy and power basis matched to the assessed duty, then mapped onto the available product configurations.

Equipment selection

Selection between C&I cabinet systems and containerized platforms, and the matching power-conversion arrangement.

Electrical and system integration

Interconnection point, protection coordination, metering, medium-voltage interface and physical installation arrangement.

EMS and control requirements

Dispatch strategy, interfaces to existing SCADA, PLC or plant control systems, and monitoring and reporting requirements.

Site-interface definition

Footprint, civil and thermal interfaces, cable routing, access and safety requirements defined against the selected equipment.

Project coordination

Supply, documentation, schedule and scope-boundary coordination between the manufacturer, site and installing parties.

Commissioning support

Energisation support, functional and control-strategy testing, settings verification and operator familiarisation.

Field support

Post-commissioning technical support, spares planning and remote or on-site assistance.

System architecture

How the system fits together

The battery system connects through the power conversion system to site distribution, where the grid, site load and any renewable generation or generator capacity meet. The EMS coordinates dispatch across them.

BESS system architecture — schematic relationships

Topology schematic. Actual configuration, protection, metering and interconnection arrangements are defined per application. No ratings, capacities or performance values are represented.

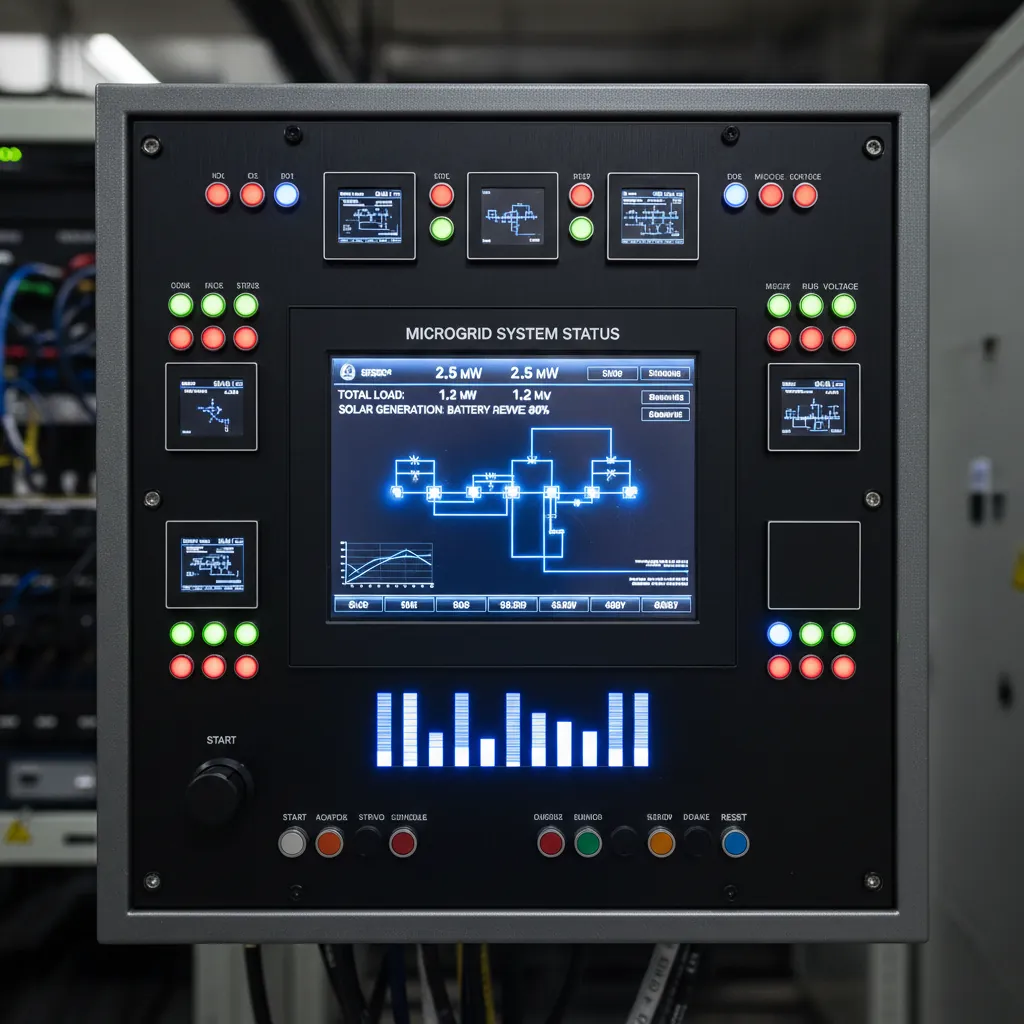

Microgrid control panel with live monitoring displays — Microgrid control panel with live system monitoring

Energy monitoring and performance dashboard — Energy monitoring and dispatch dashboard

Core system elements

Battery system — cells, racks, battery management and the enclosure or building housing them.
PCS — power conversion between the battery DC system and the site AC distribution, with its protection and control interfaces.
EMS — dispatch logic, monitoring and coordination with site metering and the plant control system.

Site interfaces

Grid / load — the interconnection point, protection coordination and the facility loads the system serves.
Renewable generation — solar, wind or other on-site generation, where present.
Generator — where applicable, existing generation retained within a hybrid or off-grid arrangement.

Engineering & integration

MotiraTech's engineering role

An engineering-led scope, not a supply-only transaction. The same team carries the application from assessment through commissioning and support.

Application assessment

Review of load data, tariff structure, existing electrical infrastructure and site conditions to establish whether storage is technically and commercially appropriate.

System sizing

Energy and power basis derived from measured load behaviour and the intended duty, rather than from a catalogue selection.
